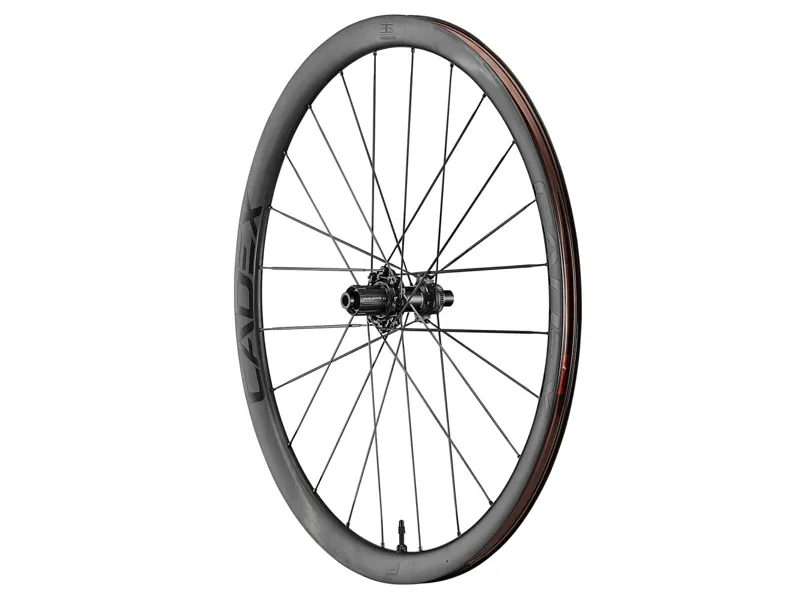

Cadex 36 Disc Tubeless Carbon Clincher Rear Road Wheel

The CADEX 36 Disc WheelSystem is a versatile, lightweight carbon wheel built for real-world performance. Featuring a hookless rim design with optimal 22.4mm internal width and 36mm depth, it delivers unbeatable acceleration and climbing efficiency as well as confident handling on descents, in the wind and on varied terrain.

Key Features:

• Precision-reinforced lay-up places carbon fibre only where needed, creating a strong, stiff rim structure
• Dynamic Balanced Lacing technology produces a stiffer, more efficient wheel with outstanding power transfer.
• High tensile strength CADEX aero carbon spokes minimize lateral flex for more efficient acceleration and climbing.
• The 22.4mm inner rim width creates an increased actual tyre contact patch for better traction and impact absorption, better handling, more confidence and less rider fatigue
• CADEX hookless rim technology features a broad inner rim width and durable continuous carbon fibre structure, helping create a rounder tyre shape for superior grip and handling plus added sidewall support when cornering, all without compromising weight
• The precision machined low-friction R1-C30 hub significantly reduces bearing load as CADEX ceramic bearings further increase efficiency by offering lower rolling resistance and 1.5x smoother action than steel
• A low 36mm rim profile offers excellent stability in shifting winds

Specifications:

• Rim Material: Carbon
• Rim Type: Hookless Clincher
• Tubeless: CADEX Tubeless System (rim tape and valve kit included)
• Suggested Tyre Size: 700 x 25C – 700 x 32C
• Rim Height: 36mm
• Rim Outer Width: 26mm
• Rim Inner Width: 22.4mm
• ETRTO: 622-22
• Hub: CADEX R1-C30 Hub, Ratchet Driver, Centerlock
• Hub Compatibility: Shimano 11 / SRAM XDR 12 / Campagnolo
• Bearing: CADEX Ceramic Bearings
• Axle: 142×12 Thru Axle
• Spokes: Aero Carbon Spoke
• Lacing: DBL, 24H
• Nipple Type: Alloy, Internal
• Warranty: 2 years
• Incident Replacement: 5 years (registered original owner only)

Custom-Tuned DBL Technology
Dynamic Balanced Lacing ensures spokes are set for optimal tension when under the dynamic pedalling force versus when static, resulting in superior transmission stiffness and efficiency.

Low-Friction Hub
Precision machined internals eliminate excessive bearing load, reduce bearing friction and minimise rolling resistance.

Aero Carbon Spokes
High tensile-strength CADEX aero carbon spokes minimize lateral flex for more efficient acceleration and climbing and feature a purpose-designed aero shape offering excellent aerodynamic characteristics as well as superior stability in shifting winds, all at the lightest weight possible.

CADEX Ceramic Bearings
Durable, ultra-hard ceramic bearings further increase hub rolling efficiency with lower rolling resistance and 1.5x smoother action than steel bearings.

Hookless Rim Design
Provides the best flow transition from the tyre to the sidewall of the rim, resulting in reduced aerodynamic loss when compared to standard hook bead rims, and featuring a continuous carbon fibre structure enhancing overall durability.

Precision Reinforced Lay-Up
High-tensile strength carbon fibre and high Tg resin are reinforced at the most crucial points for industry-leading stiffness, ride compliance and strength with no unnecessary weight.
