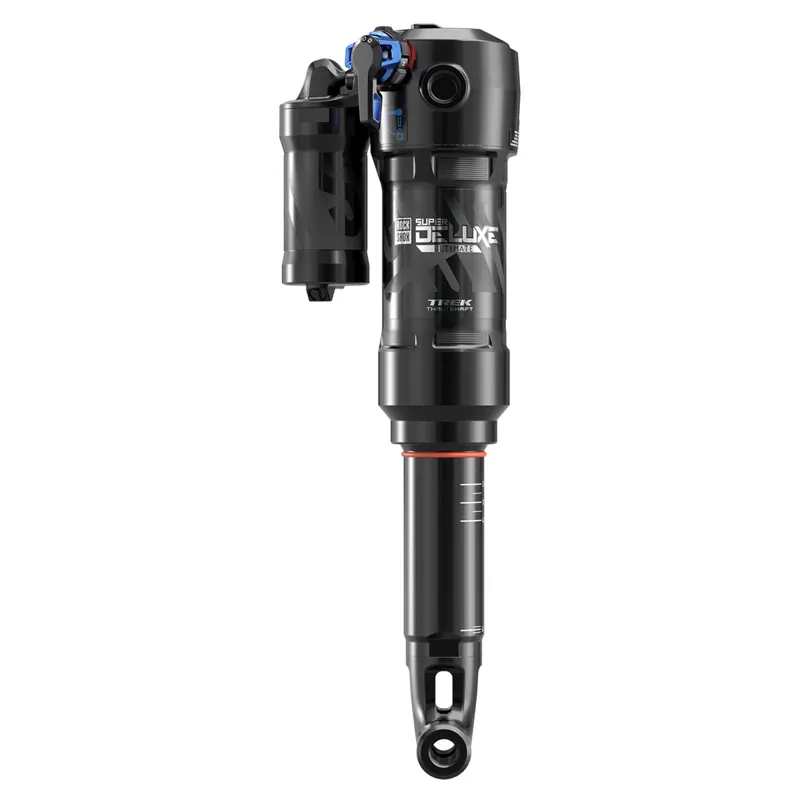

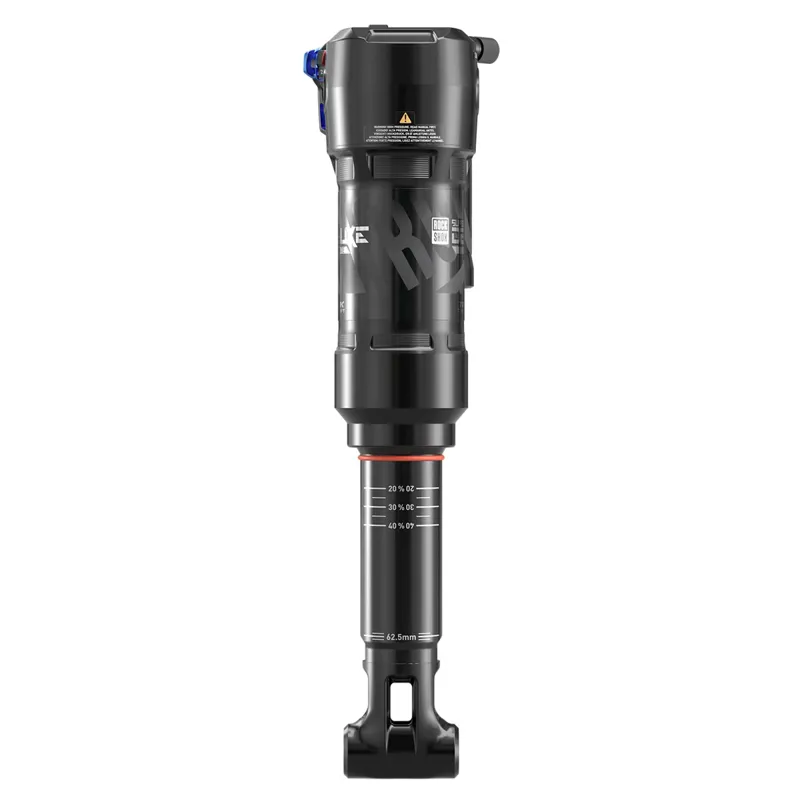

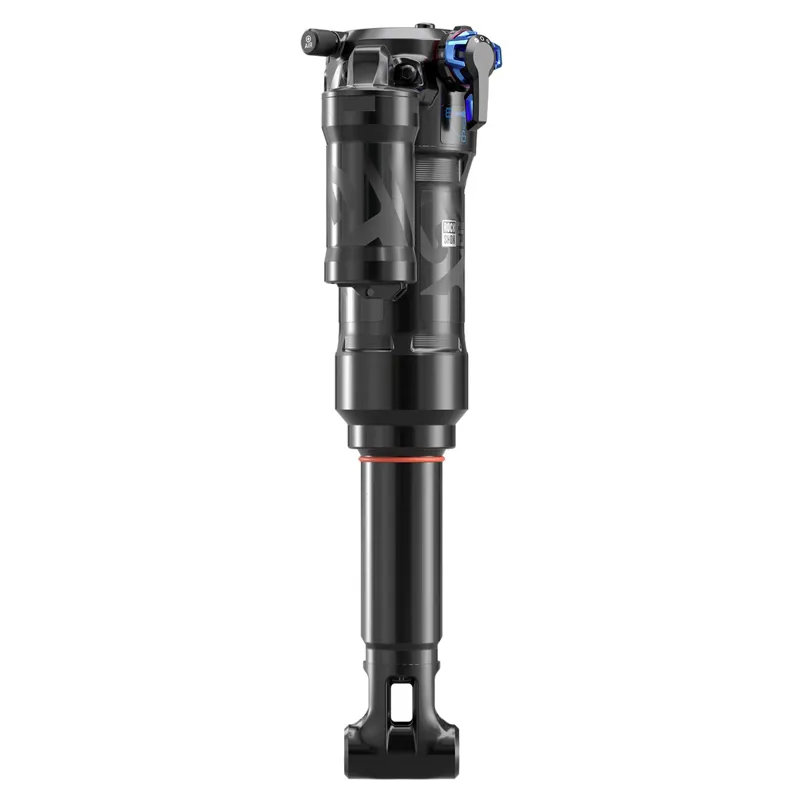

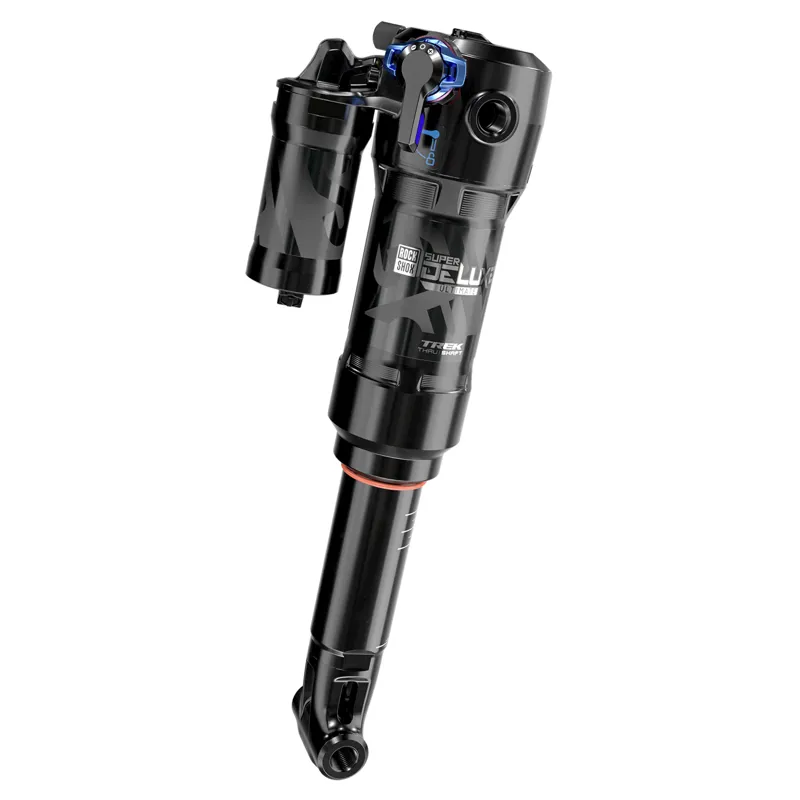

Rock-shox RockShox Super Deluxe Thru Shaft RCT Rear Shock 230×57.5 Rail

When the engineering superpowers of trek and Rockshox combine, the results are anything but ordinary. Completely reimagined, the super deluxe ultimate thru shaft was created with a go-anywhere, ride anything attitude. The ideal match for the next generation of hard-hitting all-mountain enduro bikes.

Features

• trek’s exclusive thru shaft design responds to changes in terrain faster than any other shock on the market

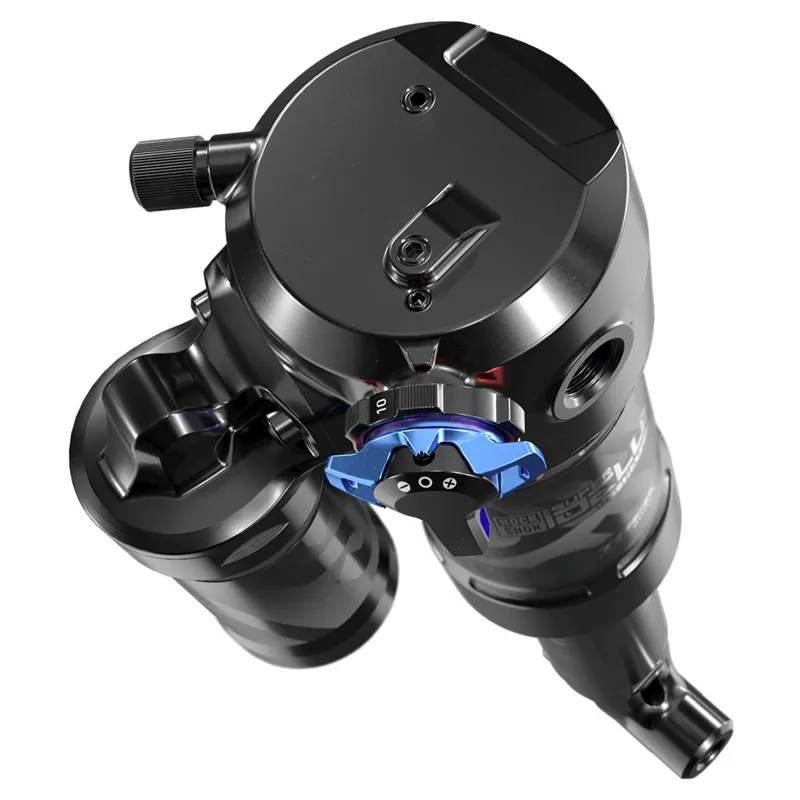

• versatility is key for a go anywhere, do anything attitude. Dial it in with redesigned low-speed compression adjustment offering three options to find your perfect match to seize the day.
• Featuring an oversized thermal compensator for greater temperature stability and consistent suspension feel on those extra-long, extra demanding descents.
• Time to adjust. With a “fully checked” damper, your compression settings work independently, not to be bothered by each click of rebound.
• Setting up your rebound made simple with numerically indicated adjustments to eliminate the number crunching.
• Shock controls optimized for frame integration and rider ergonomics
• available in trek specific trunnion thru shaft 230×57.5 and 230×62.5 configurations.
• Megneg air can is not compatible with my21 super deluxe ultimate thru shaft.
• Only compatible with purple tokens for positive and negative air spring tuning

specifications
eye to eye/stroke: 230×57.5
model designator (sr): thru Aktiv
damper type: RCT
rebound tune: m
compression tune: m
lockout force: 380
shaft eyelet: trunnion
body eyelet: yoke
damping adjustments: extl rebound, 2 pos (open/firm) w/ compression adjust
check tune: std
